Built for Large-Scale Surveys and Real-Time Surveillance

Meet Surveyaan V1RC Plus

India's Most Capable Large Scale Survey Drone for Real-Time Surveillance

DGCA Compliant Survey
Drone

Accuracy 5 cm (X,Y)
10 cm (Z)

PPK, Non-PPK &
Surveillance Payloads

Download The Brochure

Endurance40–45 Min

Max Altitude120 m

Max Wind25 kmph

Weight with Payload2.650 Kg

Built for Large-Scale Surveys and Real-Time Surveillance

The Surveyaan V1RC Plus is a professional-grade, DGCA compliant large scale survey drone engineered for India's most demanding mapping and surveillance operations. Built on the proven Surveyaan platform by Nibrus Technologies, the V1RC Plus goes beyond standard photogrammetry — offering three distinct payload configurations including Non-PPK, PPK RGB, and a dedicated surveillance payload — making it the most versatile commercial survey drone available in India today.

Constructed with the highest quality carbon fiber frame and rated for 3000 cycles of mapping operations, the V1RC Plus delivers < 5 cm (X,Y) and< 10 cm (Z) accuracy with GCP. With dual processors, class-leading safety features, fully autonomous waypoint missions, and a portable package under 5 kg, it is the ideal tool for mining firms, infrastructure developers, government survey agencies, and enterprise drone service providers who demand performance, reliability, and compliance in every flight.

Survey upto 1 Sq km in a single flight

PPK & Surveillance Payload options

Modular Design & Payload Versatile

A True Companion for Large and
Enterprise Scale Surveying

A Land Surveyor's Companion For Extended Surveys

REQUEST PRICE

Drone Type Quad-Rotor

Accuracy & RMSE < 5 cm (X,Y) | < 10 cm (Z)

Small Category 2.65 Kg Max with Payload

Endurance 40–45 Minutes

Surveyaan V1RC Plus –
Large Scale Survey Drone Has Never Been So Powerful

Built for Large-Scale Surveys and Real-Time Surveillance

40–45 Mins

Endurance

2.5 Km

Range

120 m Max

Altitude

Up-to 25 km/hr

Wind Resistance

We have taken care about your transport easiness also!

3000 Cycle Build Quality
Portable – Under 5 Kg
Ready in 5 Minutes

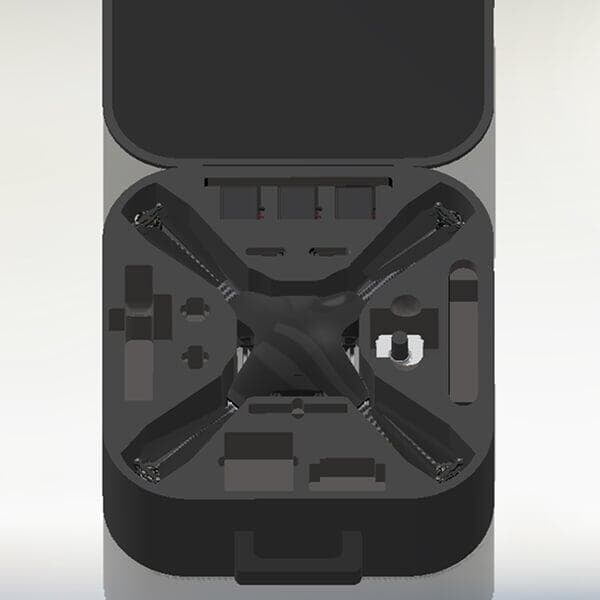

Surveyaan drone packed inside its 50cm hard transport case with foam cutouts

Take Full Control with Our Advanced Hard Joystick Controller and Live FPV System

A Land Surveyor's Companion for Precision Surveys

Hard Joystick

Controller

2.5 Km

Range

Real Time

FPV Video Feed

3-Axis

Gimbal

Live Flight

Awareness

Continuous

FPV Monitoring

Frequent questions

Lightning-fast and full-featured — make every survey faster, more accurate, and more profitable by using Surveyaan V1.

What makes the Surveyaan V1RC Plus suitable for large-scale surveys?−

The Surveyaan V1RC Plus is specifically designed for large-scale commercial survey operations. With 40–45 minutes of flight endurance, fully autonomous waypoint mission planning, dual processors for reliability, and three payload options — Non-PPK, PPK, and surveillance — it can cover vast areas in a single mission while maintaining < 5 cm (X,Y) and< 10 cm (Z) accuracy with ground control points. Its carbon fiber construction rated for 3000 operation cycles ensures consistent performance on intensive daily commercial use.

What are the three payload options available with the Surveyaan V1RC Plus?+

The V1RC Plus supports three payload configurations. The Non-PPK Payload is a 23 MP camera with a 1/2.3-inch sensor, 5.3K 60fps video, and Bluetooth connection — ideal for standard photogrammetry projects. The PPK RGB Payload is a 20 MP APS-C sensor camera with L1/L2 GNSS, up to 10 Hz update rate, and Bluetooth/Wi-Fi connectivity — delivering < 5 cm horizontal accuracy without dense GCPs. The Surveillance Payload supports 2K video recording, 3-axis stabilisation, and live 720p transmission — perfect for real-time site monitoring, security, and inspection operations.

What safety features does the Surveyaan V1RC Plus have?+

The V1RC Plus is equipped with class-leading safety features including dual processors and sensors for redundancy, automatic Return to Home on low battery, Return to Home on high wind, Return to Home on GPS glitches, and Return to Home on communication loss or high interference. These multiple failsafe layers ensure the drone returns safely under any unexpected condition during large-scale autonomous survey missions.

What survey deliverables can be generated using the Surveyaan V1RC Plus?+

Using the V1RC Plus with Surveyaan GeoWorkspace, you can generate a full suite of professional survey deliverables: georeferenced Orthomosaic maps, Digital Surface Model (DSM), Digital Terrain Model (DTM), dense 3D Point Cloud, textured 3D Models, and CAD-compatible contour outputs in DXF/DWG format. All outputs are processed through an automated cloud-based workflow — from image upload to project-ready deliverables in just a few clicks.

Can the Surveyaan V1RC Plus be used for surveillance and security monitoring?+

Yes. The V1RC Plus includes a dedicated surveillance payload that records video at up to 2K resolution with 3-axis stabilisation for smooth, stable footage and supports live video transmission at up to 720p resolution in real time. This makes it an ideal tool not only for professional survey operations but also for construction site monitoring, mining security, border area surveillance, infrastructure inspection, and real-time situational awareness for government and enterprise clients.

A Control App Which Is So
Intuitive That You Virtually
Need No Training!

Get in Touch with India's
leading Commercial Drone/
UAV Manufacturers

Have Questions About Our Surveying Drones Or Photogrammetry Software?
